Applications:

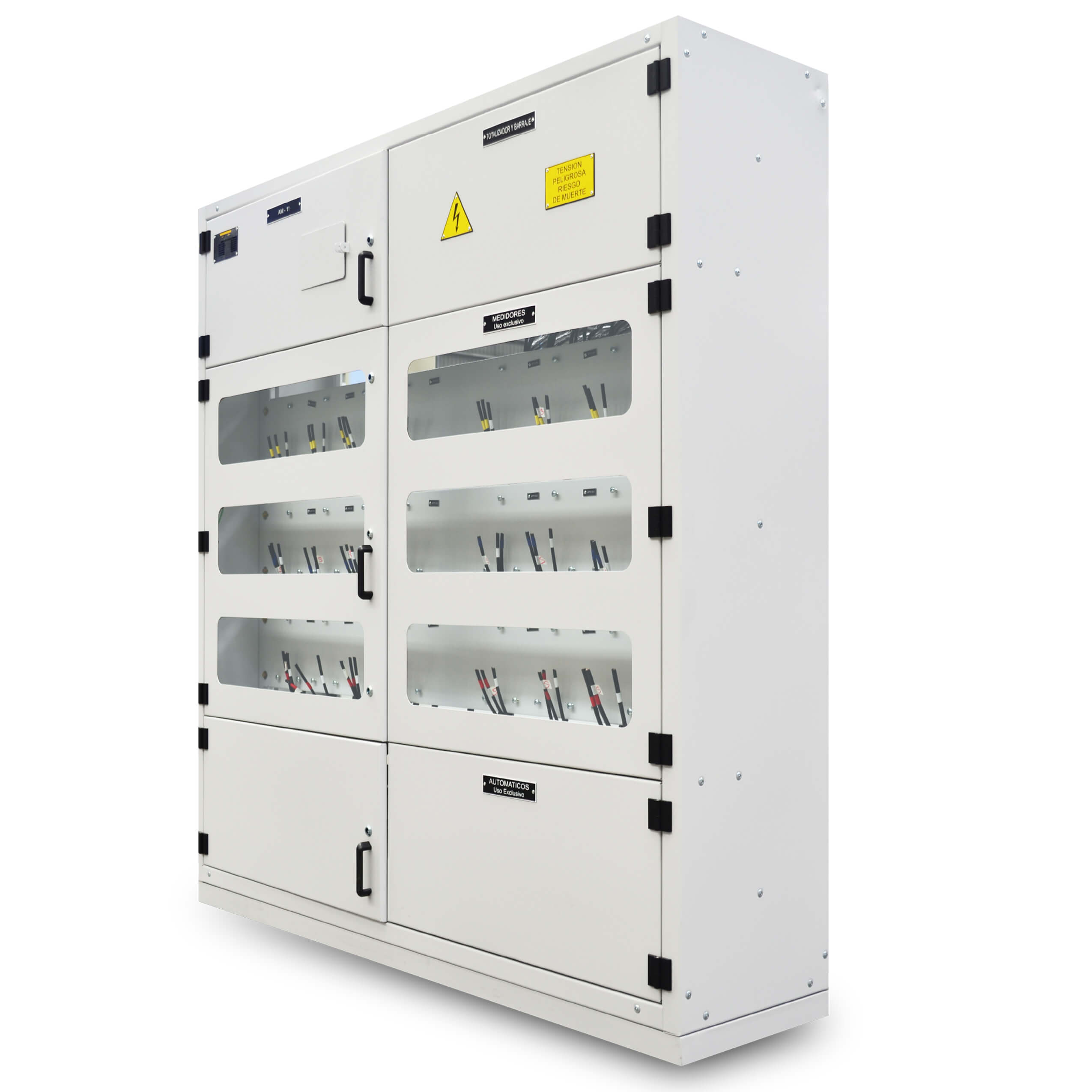

- Direct measuring concentrators for residential and/or commercial use, 6 to 24-ways, in single-phase, two-phase, three-phase systems.
General Characteristics:
- Manufactured under current regulations.
- Dimensions according to the project needs.
- Electrostatic painting.
- The different products are tested according to current regulations: IEC60439 - NTC3278 (Low voltage control panels, partially tested type panels), which
verifies:Insulation and creepage distances, mechanical operation and degree of protection.
Technical data:
- Nominal voltage: Up to 220VAC.
- Short circuit capacity Icc: Up to 20kA.
- Ik Degree of protection: Up to 10.
- IP Degree of protection: Up to 54.
Advantages:
- Totally disassembled and without welded parts.
- Polycarbonate visors that allow the correct reading of the measure and achieve protection to the meters against vandalism.
- Protection and suspension function of the different circuits that derive from the cabinet.
- Adapted to the customer's installation needs.
- Compliance with local regulations.
Industrias Ectricol S.A.S, develops its products in accordance with regulations::
RETIE Colombian Electric Code NTC 2050 – IEC 61439-1
